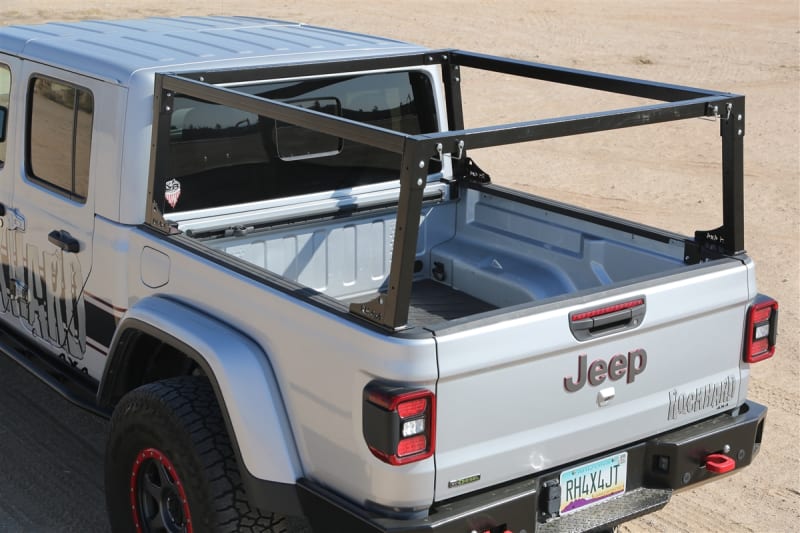

Rock Hard 4x4™ LoadOut Bed Rack System for Jeep Gladiator JT 2020 - Current [RH-80630]

The Gladiator market is saturated with bed racks that are overly complicated, one size misfits all, cookie-cutter versions of each other. They are all just thin flat plate. Once we saw the lack of innovation the industry was drowning customers with, we knew we had to step in. So in true Rock Hard 4x4 fashion, we built the strongest and smartest bed rack system you'll ever find on the trail.

The Rock Hard 4x4 LoadOut Bed Rack System is an incredibly strong, functional, and bonkers easy to install upgrade. Giving you options to mount your favorite accessories, plus preventing your JT from looking like a Temu imported product that just got uncrated at the docks.

Critical Measurements:
Mounting Plates 3/16" thick steel
2" x 2" .120 wall Square Tubing
Bed Rail up to Top of Rack 22"
Top Rail Front to Back Length 62"
Back Rail Side to Side Width 54"
Tailgate Up to Bottom of Removable Rear Crossbar 19-3/4"

Square Tube Design
It would have been laughably cheap and easy for us to simply bend some 14 gauge flat plate, add holes, and call it a day. Or, we could actually develop a bed rack system that will outlive your Gladiator's first few payments. Our LoadOut uprights and cross bars are all built from 2" x 2" .120 wall square tubing for strength not found in any other system. Our laser cut connection plates are 3/16" thick steel. Thats over 25% thicker than what imported models run. Is this the lightest bed rack system? No. Is it a screaming American bald eagle to a competitor's tweetie bird? Yes.

Get this, once it's installed, with just a few turns of a wrench you and your neighbor that owes you a favor can easily lift the whole unit out of your bed with zero disassembly.

Installation
No joke, it took us longer to unbox a LoadOut system than it did to install it. It uses only hand tools into existing holes in your JT's bed. Works WITH OR WITHOUT the factory JT bed rail system. No matter what your rig's trim level or factory options, our LoadOut will bolt right in.

Features
Tie Down Strap points at all 4 corners
Removable Rear Streamer Bar for taller loads. Moving a fridge? No problem.

Optional GearHub Accessory Mounting Panel
RH-80660 (sold individually)
Panel Dimensions 16" x 61"
5/16" mounting holes
Lasercut Patterns for RotopaX, PowerTank, MOLLE - you name it!


Optional GearHub HookHandle
RH-80665
Provides a super convenient handle or place to store straps, cables, etc.

---

FAQ:
Is any welding required?
No. No drilling or cutting required either.

What finish is available?
Our bed rack systems ship in a raw, bare metal finish and allows you the freedom to select your own color locally. Continue a color theme into your bed for a more unique, your Jeep look! If you select the Black Powdercoat option above we'll coat it in our durable black finish we use on all our other standard coated parts.

Where is this made?
This product, like all RH4x4 parts, was designed, developed, tested, manufactured, and if applicable, powder coated, and shipped in the USA. And we don't mean the 75% legal standard to be able to say Made in USA. We are 100% Made in the United States of America!

All products sold by Rock Hard 4x4™ are sold for off road use only. Any other use or application is the responsibility of the purchaser and/or user.

---

Product: Lifetime
Coating (if applicable): Due to varying climates and individual use, we cannot offer a warranty on powdercoating.
